For Sale - P51D Mustang Replica $140k

Fighter Escort Wings P51D Mustang Serial number 020
This airplane has already been taxied, is ready to be signed off and is sold as a project.
Install the tailwheel retract door spring, paint with your color choice and capitalize upon years of work completed by a doctor on his fantasy airplane.
This is a unique opportunity for the select person who wants to own a quality-built, no expense-spared scale Mustang replica.

View the Ad on Barnstormers

Constructed from a Fighter Escort Wings (FEW) kit, the 2/3 size composite replica faithfully represents the single seat North American P51D Mustang fighter of WW II. Further, the cockpit has been constructed to closely resemble that of the original P51.

The composite components were professionally molded, cured and treated in carefully controlled ovens to the highest commercial standards. Noted aerodynamicist, John Roncz, designed the airfoil and consulted in the wing design. The result is a fast but docile wing, with performance similar to that of the RV series. Overall result is a very manageable aircraft with comfortable low speed behavior. The resulting airframe is fully aerobatic, stressed to +/- 6g. Stalling speed under 60 MPH Vso, and maximum airspeed limited to 340MPH Vne.

* Power is a small block Chevrolet 383 cubic inch V8 all professionally hand built, blue printed and dyno-tested featuring;
    Aluminum heads
    Crower forged piston rods
    Forged crankshaft
    Dual MSD ignitions
    Airflow Performance Fuel Injection
    Exhaust manifolds were specially designed and constructed so as to place the exhaust stubs in scale position on the cowling
The Propeller Speed Reduction Unit (PSRU) is a Universal Engineering Mark I unit with an upgraded 4" drive chain
* The constant speed, four bladed propeller, is specifically constructed by Whirlwind for the FEW Mustang and is driven by a pressure lubricated gearbox.
* The hydraulic system is contained completely within the wing, and controls the fully retractable landing gear.
The coolant radiator installed behind and below the wing as in the full scale Mustang.

The builder, now in his nineties, flew P51's in squadron service many years ago in the Royal New Zealand Airforce. He has lost his Medical, and is no longer flying.
The project is just short of being called an airplane as the airworthiness certificate is not yet issued. Minor amounts of work remain to be completed by the purchaser.
Currently located in a hangar on the Hillsboro, Oregon airport (KHIO), the seller will assist in providing access for your inspection.
Thank you for your interest!

Please contact John at P51D@bouyea.net for questions and more details.

Listing price is currently $140k USD. Open to best offer.
I'm fully committed to get this project to someone who really wants it.

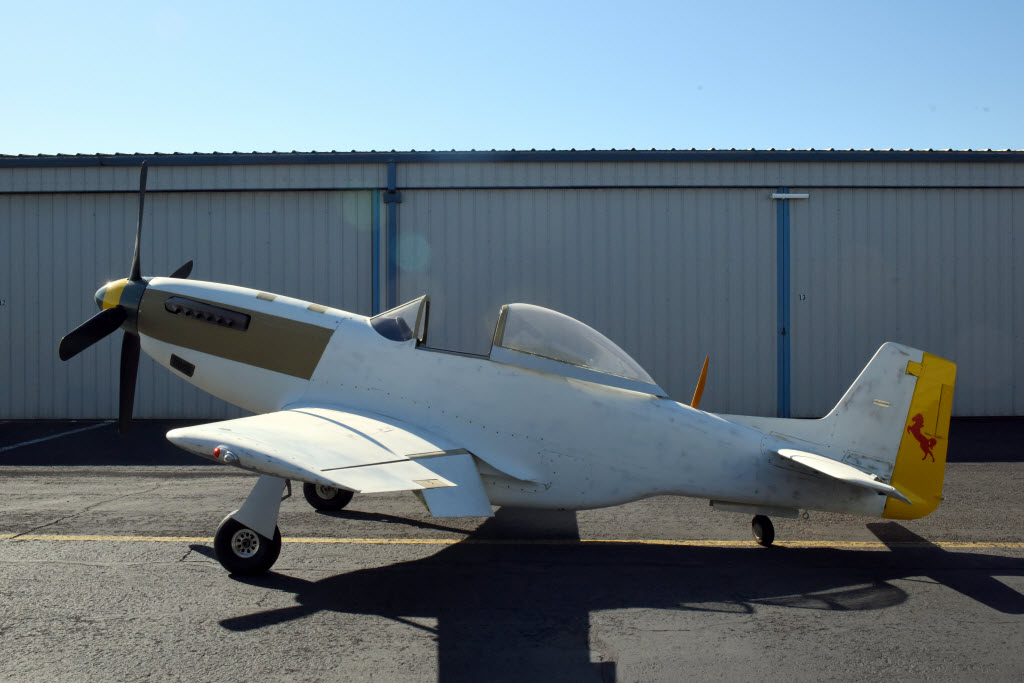

On the KHIO ramp in front of the hangar

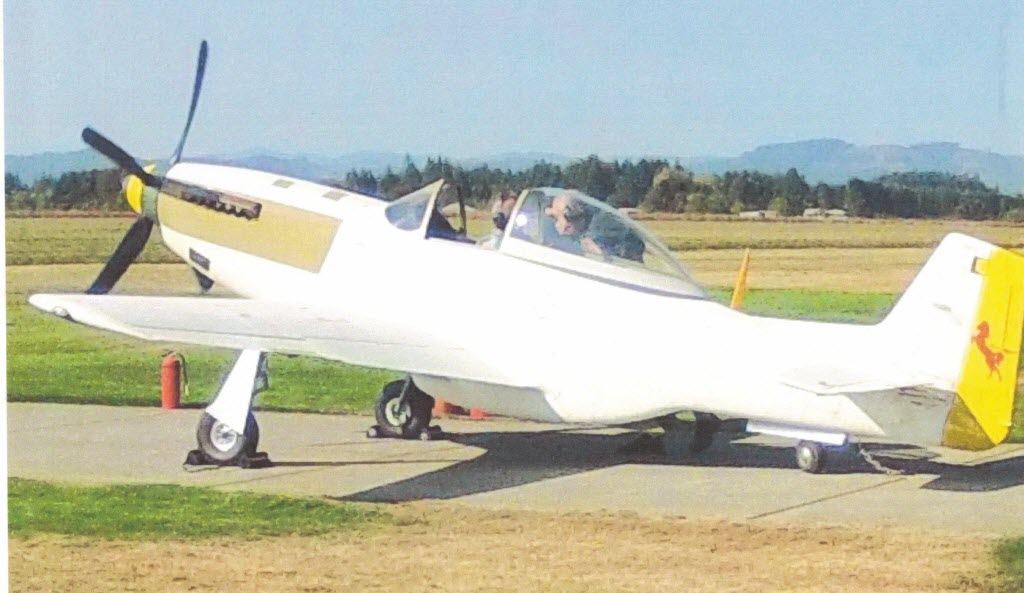

Prep for first engine start at builder's home

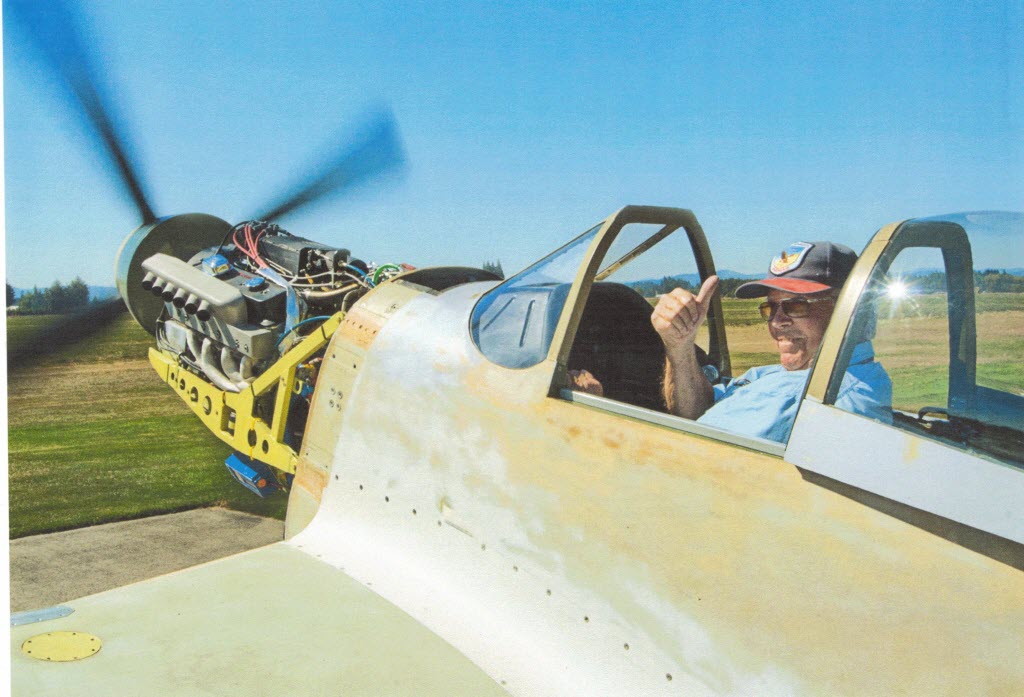

It breathes & makes noise!

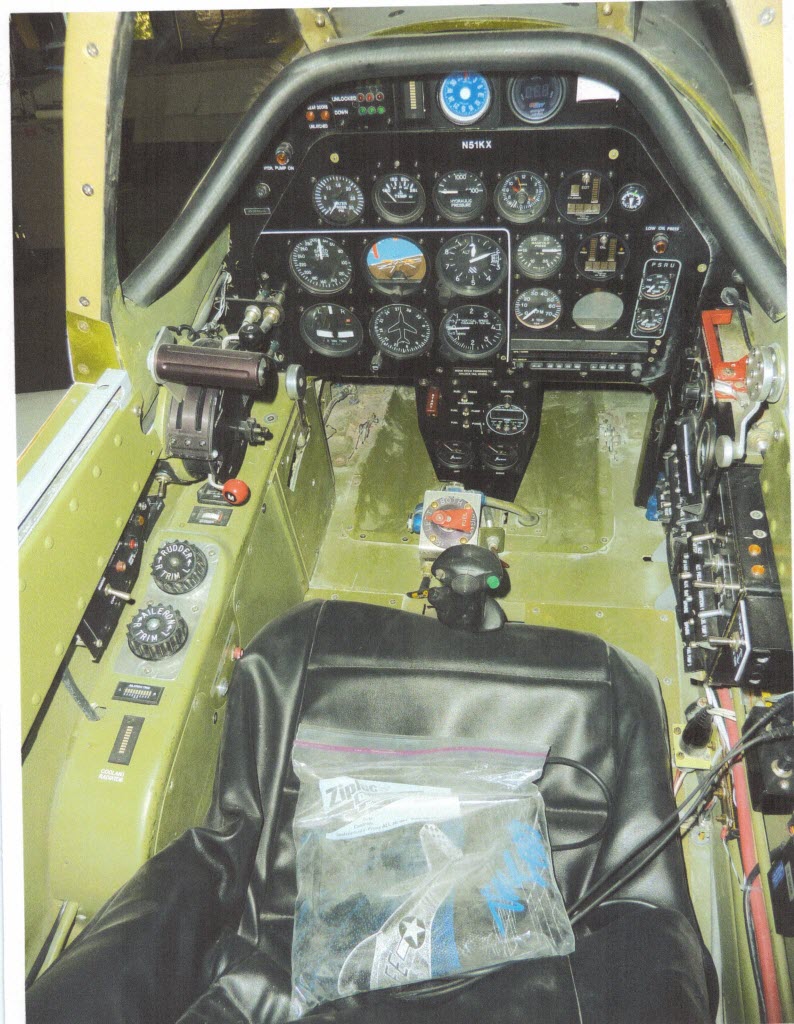

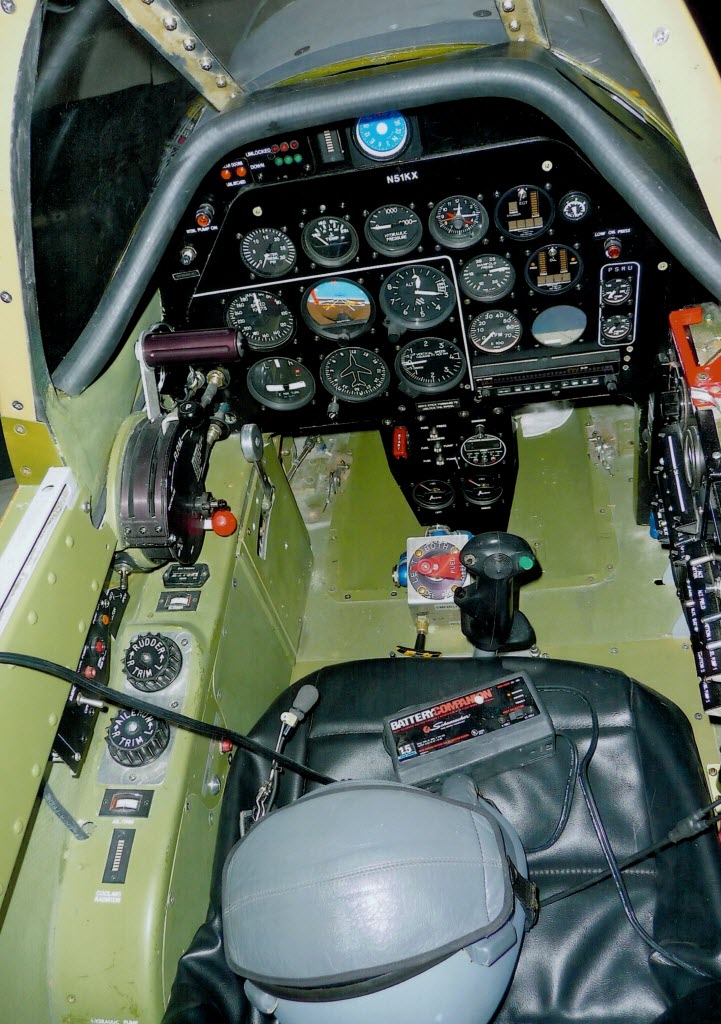

Pilot's view. Detailed cockpit measurements listed and shown below

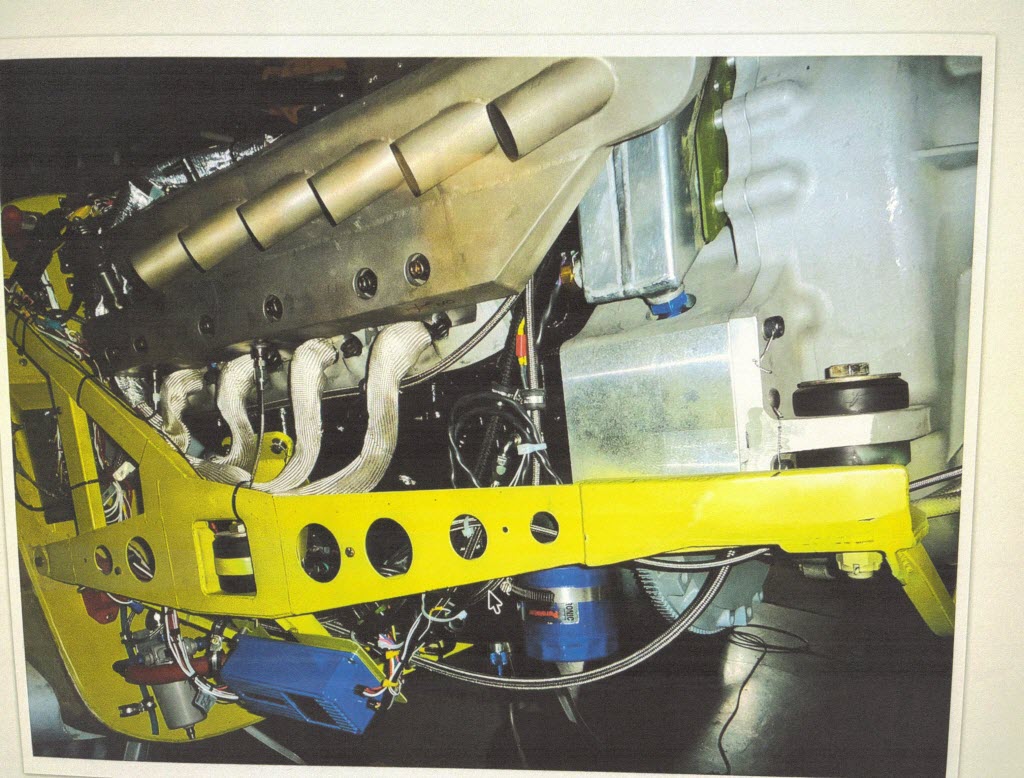

In the Hillsboro hangar, right side engine detail

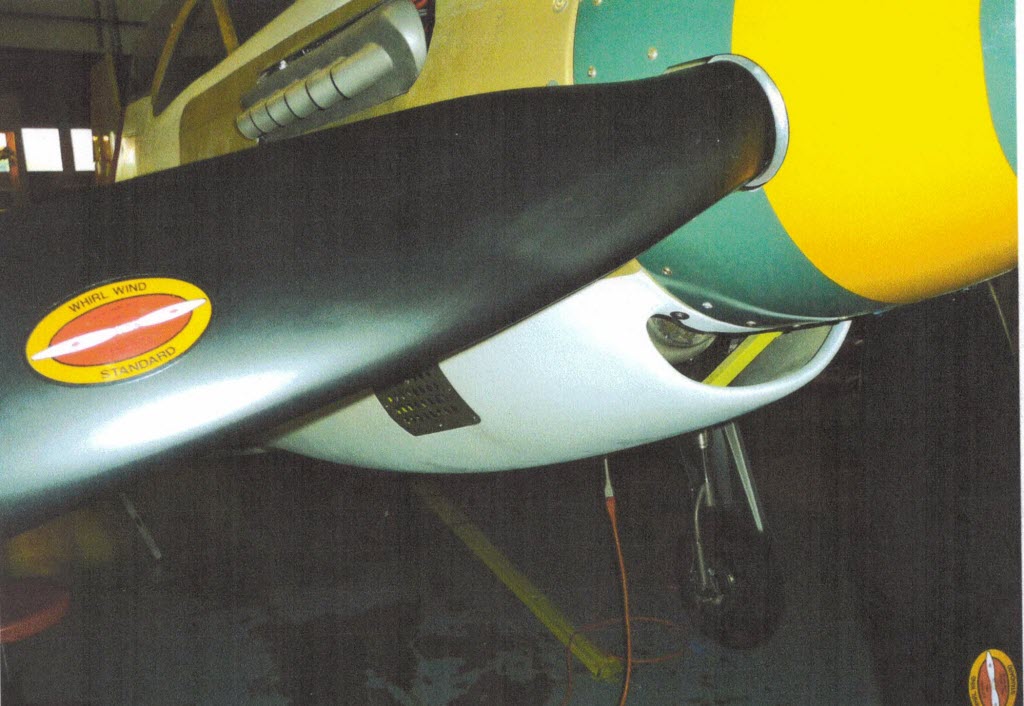

Specially built Whirlwind four blade propeller

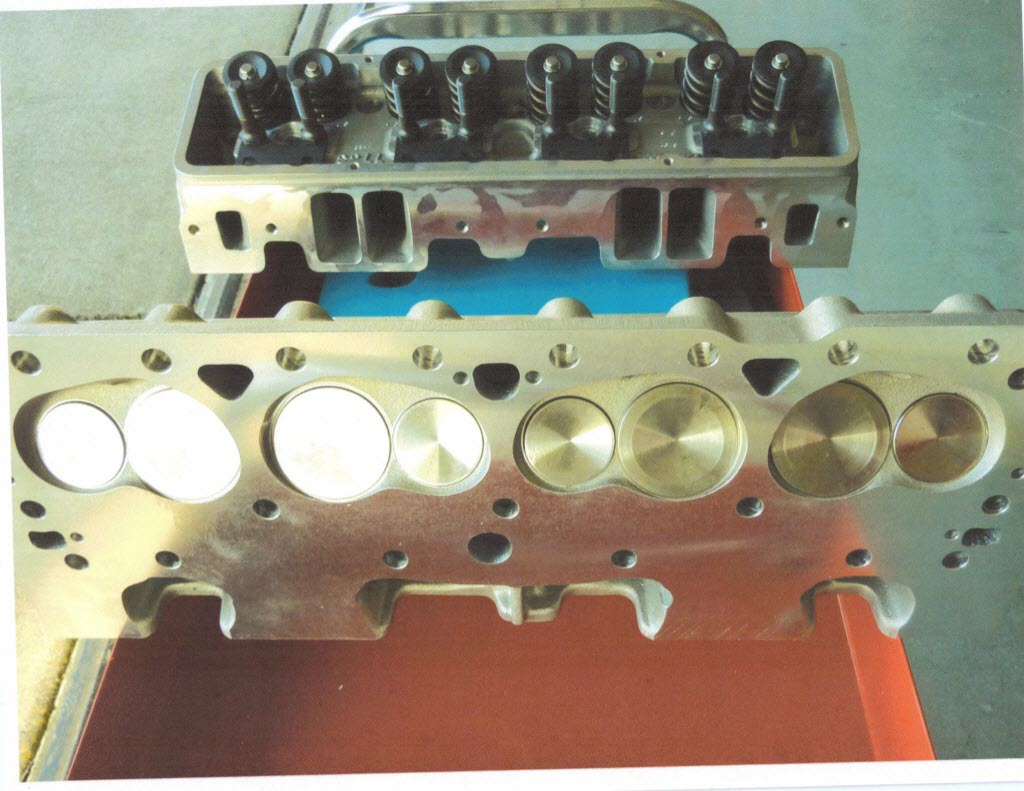

Aluminum small block Chevrolet heads

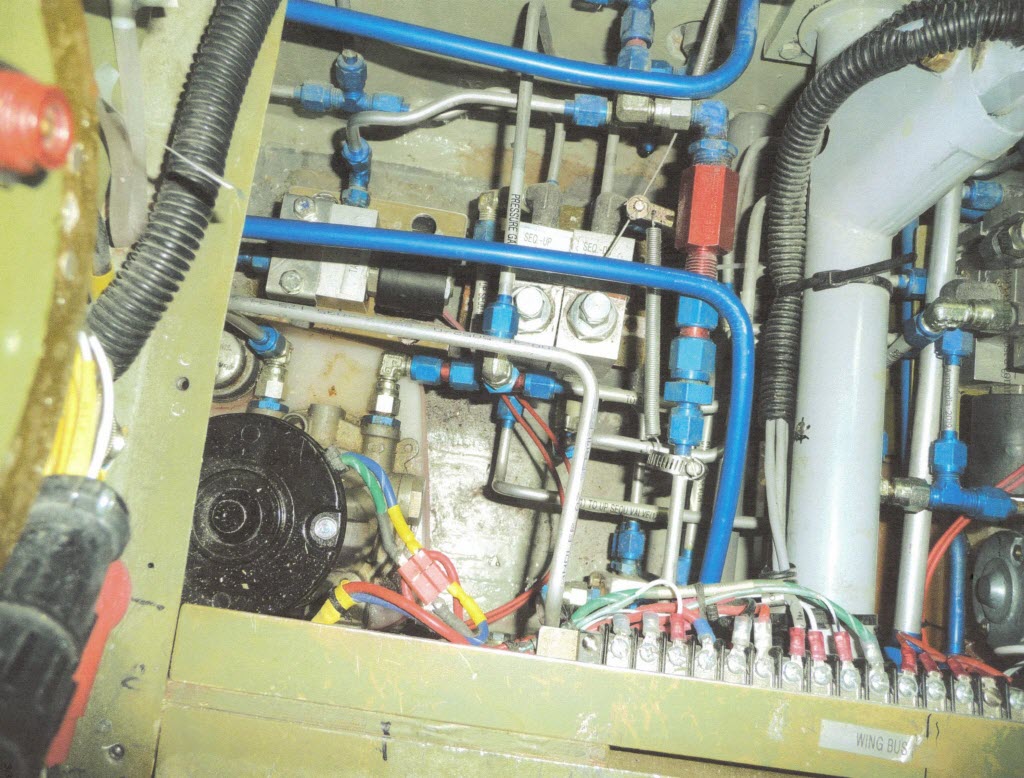

Typical construction quality detail photo and documentation sample (taken from binder/ book #9. I know right?)

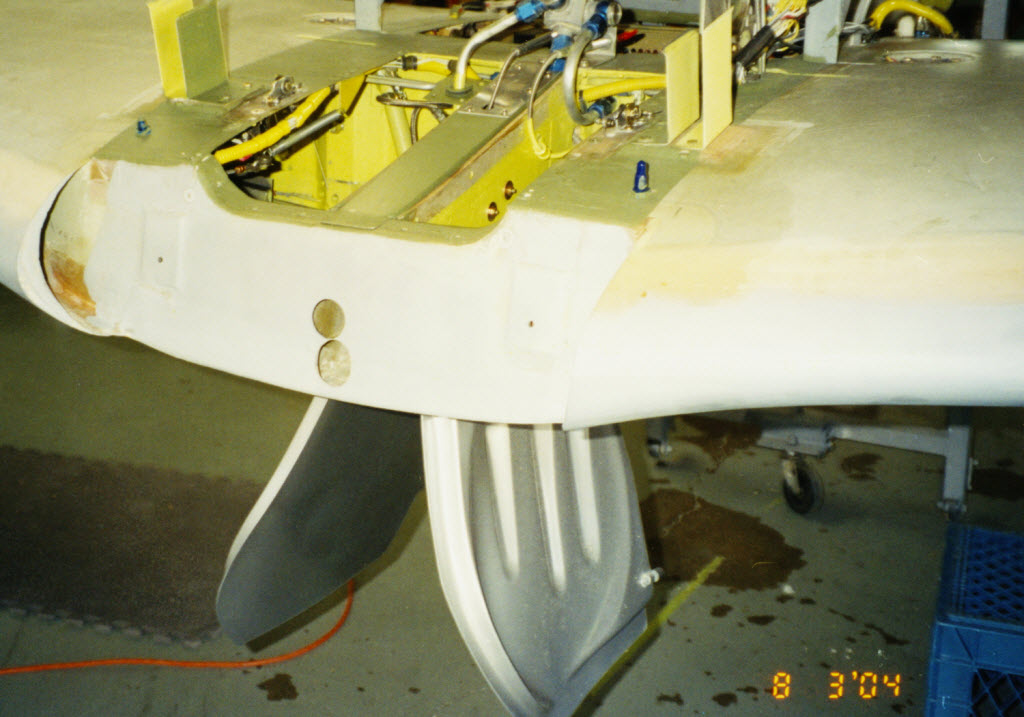

Wing with door assemblies


Young P51D Pilot and as a Senior P51D Builder selling his dream

Engine run movie file

Several people have asked about the cockpit dimensions;
    21" Width at Canopy rails
    24" Width at hips
    34" Height seat base to canopy (note this is measured from the non-compressed 2" foam pad under the 1" vinyl seat cover)
    41" to 44" Legroom (note this is measured from the rudder pedal bottom [slightly elevated above the floor] to the seat base rear as detailed following;

Cockpit Legroom Dimensions:
Seat Rail Mounts
Seat rail mount nutplates

Seat pan drillings


Seat pan forward position (measured from rudder pedal bottom)


Seat pan aft position (measured from rudder pedal bottom)


Knees at forward seat position (model has 32" inseam)


Knees at aft seat position (model has 32" inseam)
*** NOTE: At this position, I cannot keep my heels on the pedal bottom while braking as I'm sitting too far back! ***

Documentation:

FEW_Kit_Order_Receipt.pdf
    ChevroletEngineBuildSpecs.pdf
    Whirlwind450PropSpecSheet.pdf
    UniversalEngineeringMk1PSRU.pdf
    AirFlowPerformance.pdf

Reserve parts (Spares)

We are still assembling build logs and other documentation at this time.
So far, we've indexed 13 (thirteen) 3-ring binders full of information on this project; N51KX-DocumentationIndex.pdf

This project is extensively detailed and includes schematics as well like this PSRU Schematic
